Eva450 is a versatile mobile patient lift for all lifting situations and for users weighing up to 205 kg/450 lbs.
Together with SystemRoMedic’s functional and easy-to-use accessories, Eva450 is the right choice for lifting in connection with transfers to and from the floor, chair or bed, as well as for horizontal lifting and gait training.
- Aluminium, for low weight
- Mast adjustable to three height positions

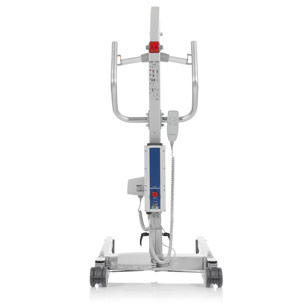

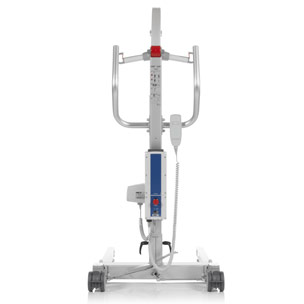

- Adjustable handle

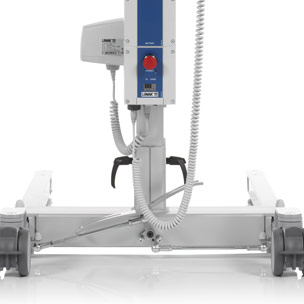

- Electrical or manual base-width adjustment
- Available with low legs for use with lower beds
- Maintenance-free castors
- Electrical emergency stop
- Electrical and manual emergency lowering
- Battery with long service life
- Built-in charging
- Many accessories
Eva450 is available in two versions; with electrical (EE) or manual (EM) base-width adjustment. Eva450EE is also available in a special version with low legs for use with lower beds. Eva450EM is only available with low legs.
All versions of Eva450 are delivered complete and ready to use, equipped with a stable sling bar with reliable safety latches and a hand control. The sling bar is standard width (450 mm/17″) which is suitable for most users and lifting situations. Eva450 can also be equipped with many clever and functional accessories from the SystemRoMedic™ Lifting range.
AmbulationArm is an accessory which can be employed as armrests by the user during gait training but they can also be used by the carer for manoeuvring the lift.
| Technical information | |
| Safe working load: | 205 kg / 450 lbs |
| Lifting height min – max: | 500-1790 mm (19,7-70,5”) |
| Outer dimensions base: | 685-980 mm (27-38,6”) |
| Inner dimensions base: | 585-880 mm (23-34,6”) |
| Lifting speed without load: | 3.5 cm/s (1,4”/s) |
| Emergency lowering: | Manual and electrical |
| Castors: | Ø 100 mm (Ø 3,9”) |
| Castors (low legs versions): | Front: 2 x Ø 35 mm (Ø 1.4”) Rear: Ø 100 mm (Ø 3.9”) |
| Battery capacity: | 2.9 Ah |
| Material: | Aluminium |
| Protection class: | IPX4 |
| Sling bar (width): | 450 mm (17,7”) |
| Weight (with battery): | 34 kg / 74,9 lbs |
| Item No | Product | Description |
|---|---|---|

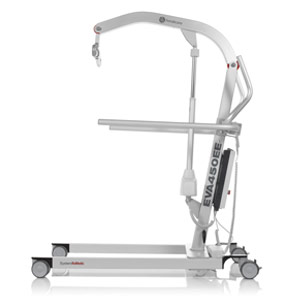

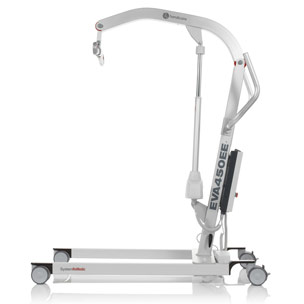

| 01-60100002 | Eva450EE | Eva450EE electrical (EE) base-width adjustment. Delivered complete and ready to use, equipped with a stable sling bar with reliable safety latches and a hand control. The sling bar is standard width (450 mm/17") which is suitable for most users and lifting situations. Eva450 can also be equipped with many clever and functional accessories from the SystemRoMedic™ Lifting range. |

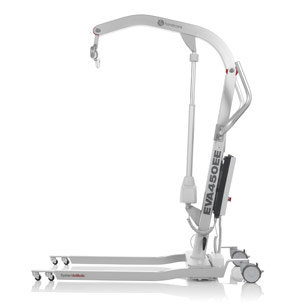

| 01-60100006 | Eva450EE, with low legs | Eva450EE electrical (EE) base-width adjustment. with low legs for use with lower beds. Delivered complete and ready to use, equipped with a stable sling bar with reliable safety latches and a hand control. The sling bar is standard width (450 mm/17") which is suitable for most users and lifting situations. Eva450 can also be equipped with many clever and functional accessories from the SystemRoMedic™ Lifting range. |

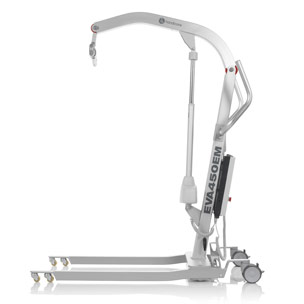

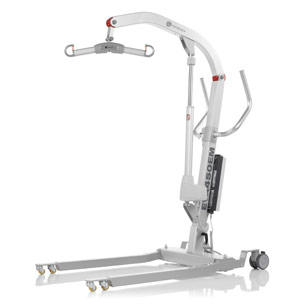

| 01-60100007 | Eva450EM, with low legs | Eva450EM, manual (EM) base-width adjustment. Eva450EM is only available with low legs. Delivered complete and ready to use, equipped with a stable sling bar with reliable safety latches and a hand control. The sling bar is standard width (450 mm/17") which is suitable for most users and lifting situations. Eva450 can also be equipped with many clever and functional accessories from the SystemRoMedic™ Lifting range. |
| Item No | Product | Description |
|---|---|---|
| 01-80100010 | AmbulationArm | AmbulationArm is an accessory for all models and versions of Eva mobile lifts. AmbulationArm can be employed as armrests by the user during gait training but they can also be used by the carer for manoeuvring the lift. |
| 01-702000029 | External charger | External charger Linak, for Eva450 and Eva600 |
