Extra strong and safe, for heavy users

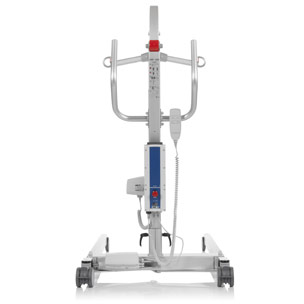

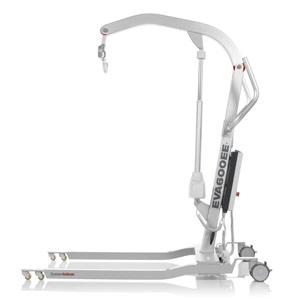

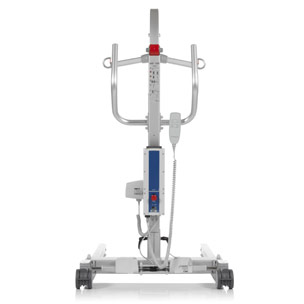

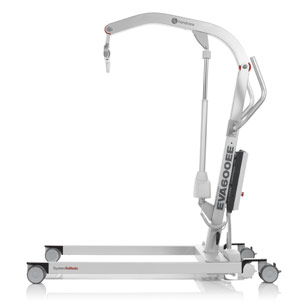

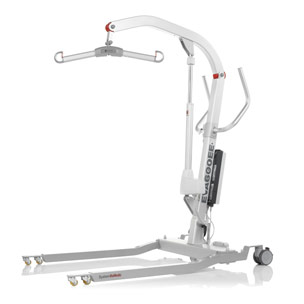

Eva600EE is a versatile mobile patient lift for all lifting situations, especially for heavier users weighing up to 270 kg/600 lbs.
Together with SystemRoMedic’s functional and easy-to-use accessories, Eva600EE is the right choice for lifting in connection with transfers to and from the floor, chair or bed, as well as for horizontal lifting and gait training.
- Aluminium, for low weight
- Mast adjustable to three height positions
- Adjustable handle
- Electrical base-width adjustment
- Available with low legs for use with lower beds
- Maintenance-free castors
- Electrical emergency stop
- Electrical and manual emergency lowering
- Battery with long service life
- Built-in charging
- Many accessories
Eva600EE is also available in a special version with low legs for use with lower beds. Both versions of Eva600EE are delivered complete and ready to use, equipped with a wider sling bar (600 mm/23.6″), providing a more open sling which is ideal for larger users, and a hand control. Eva600EE can also be equipped with many clever and functional accessories from the SystemRoMedic™ Lifting range.
AmbulationArm is an accessory which can be employed as armrests by the user during gait training but they can also be used by the carer for manoeuvring the lift.
| Technical information | |
| Safe working load: | 270 kg / 600 lbs |
| Lifting height min – max: | 500-1810 mm (19,7-71,2”) |
| Outer dimensions base: | 750-1150 mm (29,5-45,2”) |
| Inner dimensions base: | 650-1050 mm (25,6-41,3”) |
| Lifting speed without load: | 3.5 cm/s (1,4”/s) |
| Emergency lowering: | Manual and electrical |
| Castors: | Ø 100 mm (Ø 3,9”) |
| Castors (low legs version): | Front: 2 x Ø 35 mm (Ø 1.4”) Rear: Ø 100 mm (Ø 3.9”) |
| Battery capacity: | 2.9 Ah |
| Material: | Aluminium |
| Protection class: | IPx4 |
| Sling bar (width): | 600 mm (23,6”) |
| Weight (with battery): | 39 kg / 85,9 lbs |
| Item No | Product | Description |
|---|---|---|
| 01-60100003 | Eva600EE | Eva600EE is delivered complete and ready to use, equipped with a wider sling bar (600 mm/23.6"), providing a more open sling which is ideal for larger users, and a hand control. Eva600EE can also be equipped with many clever and functional accessories from the SystemRoMedic™ Lifting range. |
| 01-60100010 | Eva600EE, with low legs | Eva600EE a version with low legs for use with lower beds. Delivered complete and ready to use, equipped with a wider sling bar (600 mm/23.6"), providing a more open sling which is ideal for larger users, and a hand control. Eva600EE can also be equipped with many clever and functional accessories from the SystemRoMedic™ Lifting range. |
| Item No | Product | Description |
|---|---|---|
| 01-80100010 | AmbulationArm | AmbulationArm is an accessory for all models and versions of Eva mobile lifts. AmbulationArm can be employed as armrests by the user during gait training but they can also be used by the carer for manoeuvring the lift. |
| 01-70200029 | External charger | External charger Linak, for Eva450 and Eva600 |
